카메라

카메라

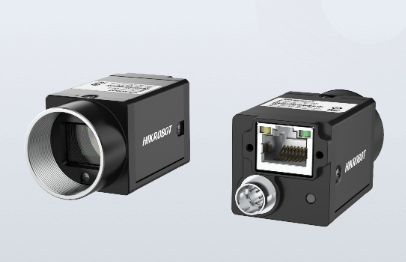

MV-CS200-10GM/GC

Type
Digital
Maker
Hikrobot
Resolution
5472 × 3648
Sensor Size
1"
Interface
GigE
Catalog download MV-CS200-10GMGC GigE Area Scan Camera_datasheet_20250225_7563.pdf

본문

제품 상세 정보
Mono camera: MV-CS200-10GM
Color camera: MV-CS200-10GC
Resolution: 5472 × 3648
Pixel Size: 2.4 μm × 2.4 μm
Frame Rate: 5.9fps
Sensor Type: CMOS, rolling shutter
Mount: C-mount

카메라 목록

  • Type

  • Maker

  • Resolution

  • Sensor Size

  • Interface

RESET
  Product Name Type Maker Resolution Sensor Size
MV-CU200-20GM/GC Digital Hikrobot 5120 × 3840 1/1.8"
MV-CU120-10GM/GC Digital Hikborot 4024 × 3036 1/1.7"
MV-CU060-60GM/GC Digital Hikrobot 3200 × 1944 1/2.4"
MV-CU060-10GM/GC Digital Hikrobot 3072 × 2048 1/1.8
MV-CU050-90GM/GC Digital Hikrobot 2600 × 2160 1/2"
MV-CU050-60GM Digital Hikrobot 2592 × 1944 1/2.5"
MV-CU050-30GM/GC Digital Hikrobot 2592 × 1944 1/2.5"
MV-CU020-90GM/GC Digital Hikrobot 2048 × 1200 1/1.7"
MV-CU020-80GM/GC Digital Hikrobot 1600 × 1200 1/2.6"
MV-CU020-19GM/GC Digital Hikrobot 1920 × 1080 1/2.8"
MV-CU016-10GM/GC Digital Hikrobot 1440 × 1080 1/2.9"
MV-CU013-A0GM/GC Digital Hikrobot 1280 × 1024 1/2"
MV-CU013-80GM/GC Digital Hikrobot 1280 × 1024 1/2.7"
MV-CU004-10GM/GC Digital Hikrobot 720 × 540 1/2.9"
MV-CS200-10GM/GC Digital Hikrobot 5472 × 3648 1"
