카메라

카메라

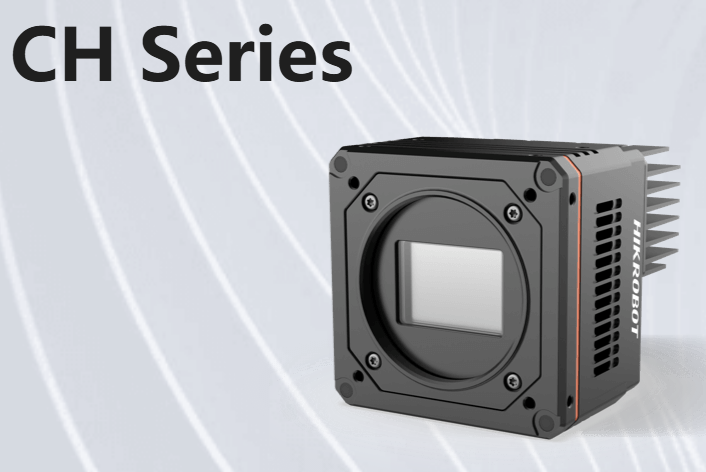

MV-CH050-60NM/NC

Type
Digital
Maker
Hikrobot
Resolution
2448 x 2048
Sensor Size
2/3"
Interface
2.5 GigE
Catalog download MV-CH050-60NMNC GigE Area Scan Camera_datasheet_20250623_7720.pdf

본문

제품 상세 정보
Mono camera: MV-CH050-60NM
Color camera: MV-CH050-60NC
Resolution: 2448 x 2048
Pixel Size: 3.45µm x 3.45µm
Frame Rate: 60fps
Sensor Type: CMOS, Global shutter
Mount: C-Mount

카메라 목록

  • Type

  • Maker

  • Resolution

  • Sensor Size

  • Interface

RESET
  Product Name Type Maker Resolution Sensor Size
MV-CH250-90TM/TC Digital Hikrobot 5120 × 5120 1.1"
MV-CH250-25TM/TC Digital Hikrobot 5120 × 5120 23 mm × 23 mm
MV-CH120-90TM Digital Hikrobot 4096 × 3072 1.1
MV-CH120-60GM/GC Digital Hikrobot 4096 × 3000 1.1"
MV-CH120-10GM/GC Digital Hikrobot 4096 x 3000 1.1"
MV-CH089-60GM/GC V5 Digital Hikrobot 4096 × 2160 1"
MV-CH089-10GM/GC Digital Hikrobot 4096 × 2160 1"
MV-CH050-60NM/NC Digital Hikrobot 2448 x 2048 2/3"
shr661CCX12_MCX12 Digital SVS-VISTEK 13392x9528 56.73mm
fxo992MXGE SWIR SVS-VISTEK 2560x2048 2/3
exo990MGE Digital SVS-VISTEK 1280x1024 1/2
exo991MGE Digital SVS-VISTEK 640x512 1/4
MER2-2000-6GM/C Digital Daheng 5496X3672 1 CMOS
MER2-1220-9GM/C Digital Daheng 4024x3036 1/1.7 CMOS
MER2-1070-10GM Digital Daheng 3840x2748 1/2.3 CMOS
