카메라

카메라

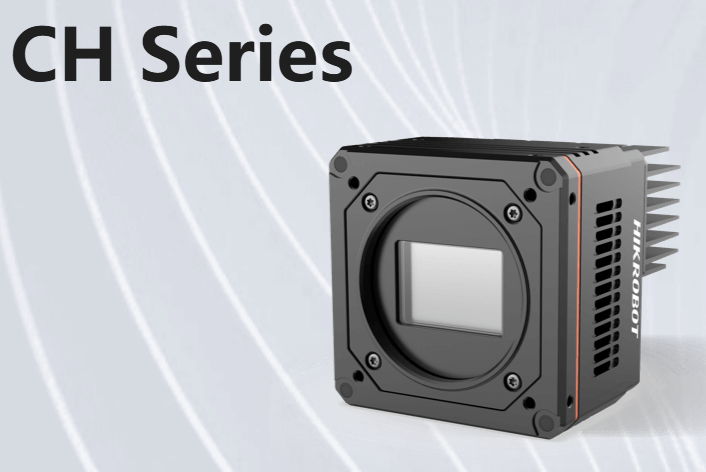

MV-CH210-90YM/YC

Type
Digital
Maker
Hikrobot
Resolution
5120 × 4096
Sensor Size
23.04 mm × 18.43 mm
Interface
CXP
Catalog download MV-CH210-90YMYC CoaXPress Area Scan Camera_datasheet_20250225_6249.pdf

본문

제품 상세 정보
Mono camera: MV-CH210-90YM
Color camera: MV-CH210-90YC
Resolution: 5120 × 4096
Pixel Size: 4.5 µm × 4.5 µm
Frame Rate: 222fps
Sensor Type: CMOS, global shutter
Mount: M58-mount

카메라 목록

  • Type

  • Maker

  • Resolution

  • Sensor Size

  • Interface

RESET
  Product Name Type Maker Resolution Sensor Size
MV-CH1510-10(11)XM/XC Digital Hikrobot 14208 × 10640 66.7 mm
MV-CH650-90YM/YC Digital Hikrobot 9344 × 7000 29.9 mm × 22.4 mm
MV-CH650-90YM Digital Hikrobot 9344 × 7000 29.9 mm × 22.4 mm
MV-CH650-90XM/XC Digital Hikrobot 9344 × 7000 29.9 mm × 22.4 mm
MV-CH250-90YM/YC Digital Hikrobot 5120 × 5120 1.1"
MV-CH250-90XM/XC Digital Hikrobot 5120 × 5120 1.1"
MV-CH250-20XM/XC Digital Hikrobot 5120 × 5120 23 mm × 23 mm
MV-CH210-90YM/YC Digital Hikrobot 5120 × 4096 23.04 mm × 18.43 mm
MV-CH120-90Y2M/C Digital Hikrobot 4096 × 3008 1.1"
MV-CH120-90Y1M/C Digital Hikrobot 4096 × 3072 1.1"
MV-CH120-90X2M Digital Hikrobot 4096 × 3072 1.1"
MV-CH120-40XM Digital Hikrobot 4096 × 3072 22.5 mm × 16.9 mm
MV-CH050-90XM/XC Digital Hikrobot 2592 × 2160 1/2
MV-CH1510-10FM/FC Digital Hikrobot 14208 × 10640 66.7 mm
MV-CH650-90TM/TC Digital Hikrobot 9344 × 7000 29.9 mm × 22.4 mm
