카메라

카메라

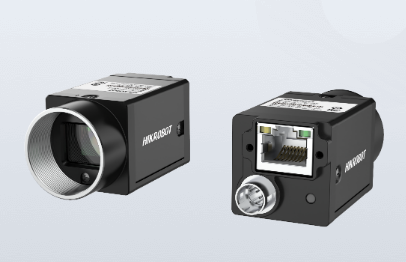

MV-CS023-10GM/GC

Type
Digital
Maker
Hikrobot
Resolution
1920 × 1200
Sensor Size
1/1.2"
Interface
GogE
Catalog download MV-CS023-10GMGC GigE Area Scan Camera_datasheet_20250228_6385.pdf

본문

제품 상세 정보
Mono camera: MV-CS023-10GM
Color camera: MV-CS023-10GC
Resolution: 1920 × 1200
Pixel Size: 5.86 μm × 5.86 μm
Frame Rate: 41fps
Sensor Type: CMOS, global shutter
Mount: C-mount

카메라 목록

  • Type

  • Maker

  • Resolution

  • Sensor Size

  • Interface

RESET
  Product Name Type Maker Resolution Sensor Size
MV-CS120-10GM/GC V5 Digital Hikrobot 4024 × 3036 1/1.7”
MV-CS060-10GM/GC-PRO Digital HIkrobot 3072 × 2048 1/1.8"
MV-CS050-60GM/GC/GN Digital Hikrobot 2448 × 2048 2/3"
MV-CS050-60GM/GC Digital Hikrobot 2448 × 2048 2/3"
MV-CS050-10GM/GC Digital Hikrobot 2448 × 2048 2/3"
MV-CS032-10GM/GC Digital Hikrobit 2048 × 1536 1/1.8"
MV-CS023-10GM/GC Digital Hikrobot 1920 × 1200 1/1.2"
MV-CS020-60GM/GC Digital Hikrobot 1624 × 1240 1/2.53"
MV-CS020-10GM/GC Digital Hikrobot 1624 × 1240 1/1.7"
MV-CS016-11GM Digital Hikrobot 1440 × 1080 1/2.9"
MV-CS016-10GM/GC Digital Hikrobot 1440 × 1080 1/2.9
MV-CS013-60GN Digital Hikrobot 1224 × 1024 2/3
MV-CS004-11GM/GC Digital Hikrobot 720 × 540 1/2.9
MV-CS004-10GM/GC Digital Hikrobot 720 × 540 1/2.9
MV-CH6040-10XM/XC Digital Hikrobot 28416 × 21280 66.7 mm
